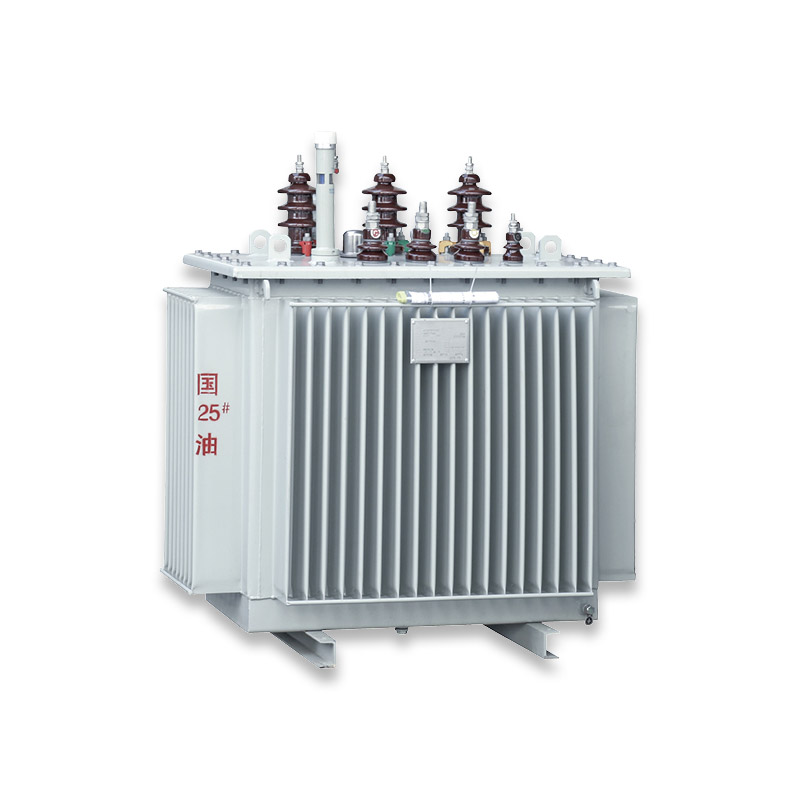

Jinhand Electrical's 1600kVA Oil Immersed Distribution Transformer demonstrates impressive energy efficiency, with typical no-load losses carefully optimized for modern industrial and utility power systems. Understanding these losses is crucial for operators aiming to reduce operational costs and improve overall grid performance.
No-load loss, also known as core loss, occurs when a transformer is energized but not supplying any external load. It represents the energy consumed to maintain the magnetic flux in the core, and although it seems minor, over time it contributes significantly to electricity costs, especially in high-capacity transformers such as the Oil Immersed Distribution Transformer.
These losses are influenced by material quality, core design, and manufacturing processes. Advanced transformers use high-permeability silicon steel, precise stacking techniques, and step-lap joints to minimize energy wasted in the core.
- Energy Efficiency: Lower no-load loss translates directly into reduced electricity consumption, particularly in industrial or distribution networks operating continuously.
- Environmental Impact: Reducing energy waste decreases greenhouse gas emissions from power generation, supporting sustainability initiatives.
- Cost Management: Even a few hundred watts of difference in no-load loss can amount to thousands of dollars in annual savings for high-capacity units.
For modern 50Hz, 10kV systems, a well-engineered 1600kVA Oil Immersed Distribution Transformer typically achieves no-load losses significantly below national standards, ensuring both reliability and efficiency.
| Model | Rated Capacity | No-Load Loss (W) | Load Loss (W) | No-Load Current (%) | Connection Type |
| S22-M-1600/10-NX1 | 1600kVA | 10440 | 1825 | 0.5 | Yyn0 Dyn11 |
As illustrated above, the no-load loss of 10440 W demonstrates careful design and material selection. Modern fully sealed transformers also prevent oxidation and moisture ingress, further maintaining consistent performance over years of operation.
High-permeability, cold-rolled grain-oriented silicon steel is essential in minimizing hysteresis and eddy current losses. Precision cutting and CNC shearing ensure minimal burrs, while step-lap stacking reduces magnetic leakage. Vacuum annealing eliminates internal stress, stabilizing performance.
A fully sealed tank protects the core from environmental factors. Reinforced ribs and double-layer anti-corrosion coatings enable the transformer to operate in humid, dusty, or even corrosive environments without increasing core losses.
Maintenance-free design eliminates regular oil changes or internal inspections. For operators, this reduces manual labor and risk of human error while ensuring the no-load performance remains stable for decades.
While no-load loss is crucial, the Oil Immersed Distribution Transformer also addresses other operational pain points:
- Long Service Life: Core insulation and fully sealed oil tanks extend equipment lifespan up to 25 years.
- Reduced Maintenance Costs: Minimal need for oil sampling or dust cleaning decreases annual operating expenses.
- Reliable Logistics: Standard lifting provisions, anti-slip packaging, and compatibility with container transport simplify deployment.
| Feature | Conventional Transformers | Jinhand 1600kVA Transformer |
| No-Load Loss | Often >12000 W | 10440 W |
| Oil Maintenance | Annual replacement | Every 5-8 years only |
| Environmental Protection | Limited | IP54, double-layer anti-corrosion |
| Lifespan | ~20 years | >25 years |
The efficiency improvements, combined with reduced operational costs, make a strong case for modern transformers in demanding industrial and utility applications.
Understanding no-load loss is essential for effective power management. The 1600kVA Oil Immersed Distribution Transformer from Jinhand Electrical provides optimized core design, advanced materials, and fully sealed maintenance-free technology to ensure consistent low no-load loss, energy efficiency, and long-term operational reliability. By addressing common pain points such as maintenance labor, energy waste, and environmental exposure, this transformer represents a reliable choice for modern distribution networks.
-
