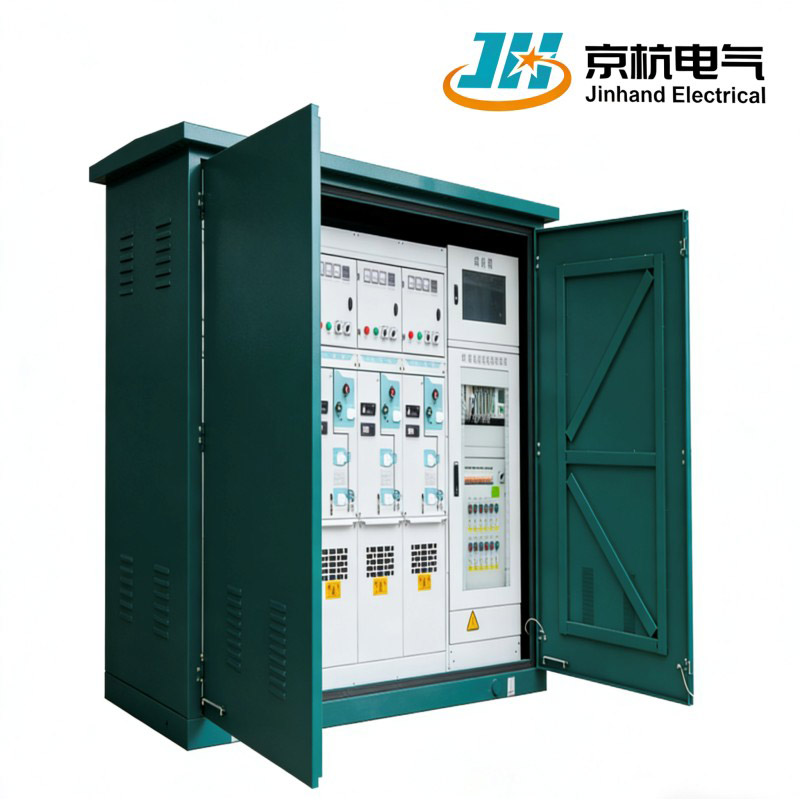

Outdoor Intelligent Switching Station

Our team has extensive industry experience and can provide customers with professional technical support and after-sales service, ensuring timely responses to their needs. The XGW-12 Outdoor Intelligent Switching Station is produced by our factory in China. As a leading electrical equipment supplier, its excellent performance and ease of maintenance make it an ideal choice for power distribution, meeting the procurement needs of global customers.

Advantages

1.Space Efficiency:The XGW-12 outdoor intelligent box type switching station occupies a small area and does not require civil engineering, making it ideal for urban settings with limited space.
2.Flexible Configuration:Its design allows for a high degree of flexibility in configuration to meet diverse user requirements.
3.Reliable Power Supply:The power supply method is more reliable compared to traditional substation lines, supporting the increasing demands of urban development.
4.Reduced Construction Time and Costs:The construction, installation, and debugging time are significantly shortened, leading to reduced overall costs.
5.Improved Urban Grid Reliability:By integrating primary and secondary systems, the reliability of urban power grid operation is greatly enhanced.

MAIN TECHNICAL PARAMETERS

Main Features

1.Integrated Design:The station integrates 12/24kV switchgear, circuit breakers, load switches, transformers, power PT, FTU, RTU, communication control terminals (CCU), metering, and automatic meter reading into a single, movable, sealed, and moisture-proof stainless steel box.
2.Modular Assembly:Achieves modular assembly of both primary and secondary systems within the urban distribution network.
3.Advanced Technology:Incorporates modern technologies for improved automation and monitoring capabilities, enhancing operational efficiency.
4.Adaptable to Urban Development:Specifically designed to address the challenges posed by increased urban density and planning restrictions.

Product Highlight

1.Fully Integrated Outdoor Intelligent Switching Station: Combines 12/24kV switching equipment, circuit breakers, load switches, transformers, PT/CT, FTU, RTU, communication control units, and metering devices into a sealed stainless steel enclosure, providing a one-stop power distribution solution.
2.Civil Engineering-Free Rapid Deployment: Modular prefabricated structure eliminates the need for complex civil works, significantly shortening construction timelines and reducing overall costs. Especially suitable for urban renovation and temporary power supply scenarios.
3.High-Reliability Intelligent Monitoring: Built-in FTU (Feeder Terminal Unit) and RTU (Remote Terminal Unit) support real-time data acquisition, fault location, remote control, and automated restoration, enhancing the self-healing capability of the distribution network.
4.Flexible and Scalable Configuration: Supports various wiring modes such as ring network, radial, and dual power supply, allowing flexible capacity expansion or circuit addition based on load growth.
5.Strong Environmental Adaptability: Stainless steel enclosure with IP4X protection rating, featuring moisture-proof, corrosion-resistant, and anti-condensation functions. Suitable for wide temperature ranges from -30°C to +40°C.
6.Low Maintenance and Long Service Life: SF6 gas annual leakage rate ≤1%, spring operating mechanism mechanical life ≥2000 cycles, supports manual/electric upgrades, and offers easy operation and maintenance.

FAQ

Q1: Does the intelligent switching station support remote monitoring and operation?
A: Yes, the built-in communication control unit (CCU) supports 4G/fiber/Ethernet communication, enabling remote monitoring, control, and data analysis via cloud platforms or SCADA systems.
Q2: Is it suitable for high-altitude areas?
A: Supports normal operation at altitudes ≤2000m. Customized designs are available for higher altitudes based on insulation requirements.
Q3: Does installation require power outages?
A: Supports live installation solutions with insulated shielding and specialized tools, allowing integration without disrupting existing grid operations.
Q4: Is it compatible with domestic and international protection and communication protocols?
A: Supports international standard protocols such as IEC 61850, DNP3.0, and Modbus, with customization available for mainstream domestic distribution automation systems.
Q5: Does the enclosure include temperature control?
A: Standard features include temperature and humidity sensors with automatic heating and dehumidification. Optional air conditioning or fans are available to ensure stable operation in harsh environment.
