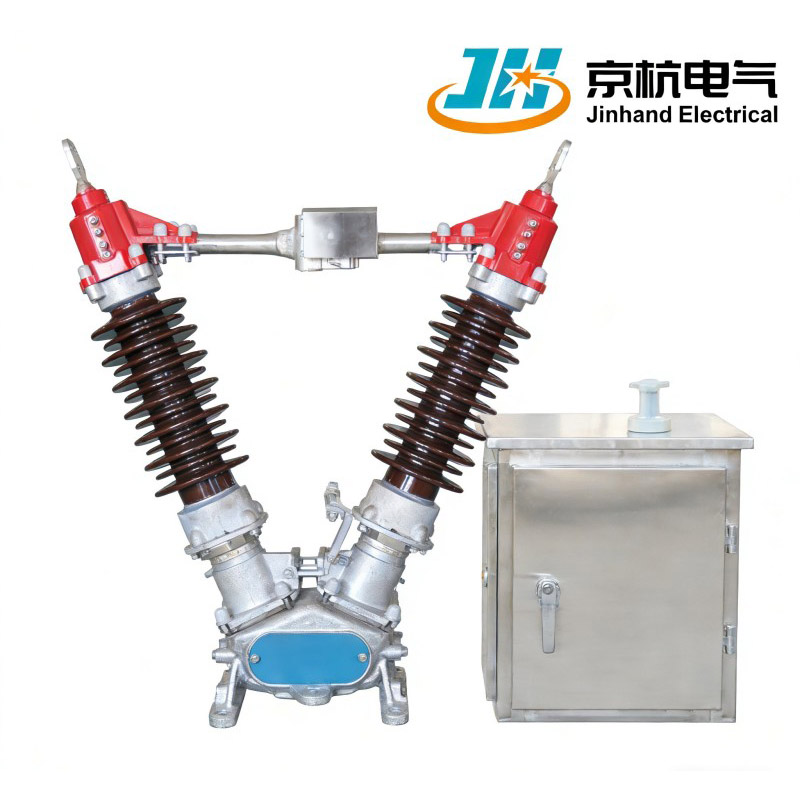

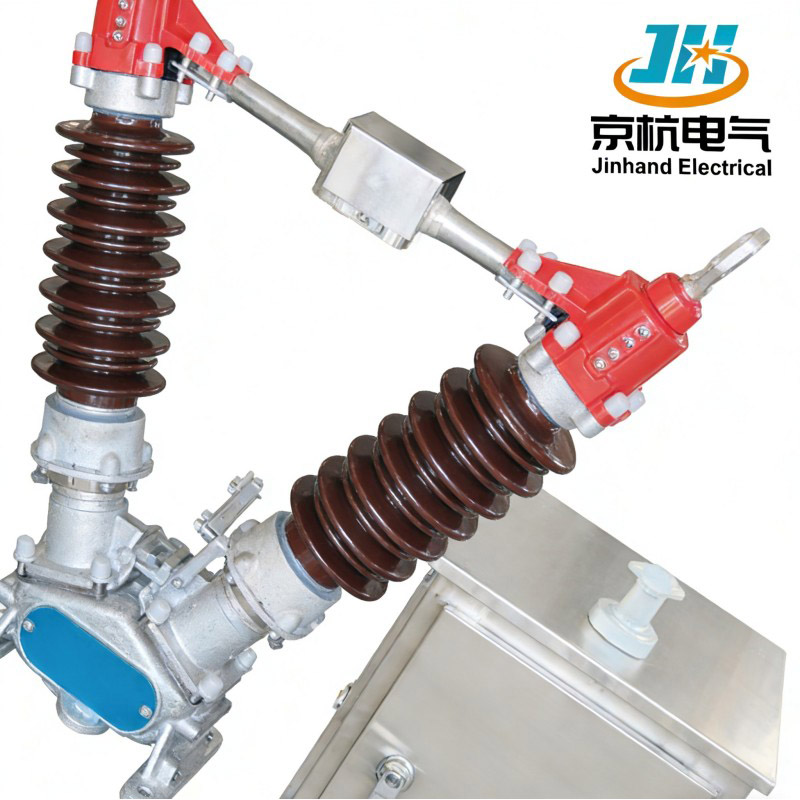

The GW5-40.5 High Voltage Outdoor AC Disconnect Switch, manufactured by Jinhand Electrical in China, operates at 50Hz and is ideal for switching high-voltage lines under voltage and no-load conditions. This innovative switch features a user-friendly design that requires no welding for installation. With a double column V-shaped structure for automatic contact cleaning, high-strength ceramic insulators, and rust-free components, it ensures reliable performance in harsh environments. As a leading supplier and factory, Jinhand Electrical provides durable solutions for high-voltage applications.
1.User-Friendly Installation: Designed for easy installation without the need for welding, simplifying the setup process.
2.Enhanced Reliability: Features a double column V-shaped structure that automatically cleans contacts, improving overall contact reliability.
3.Durable and Maintenance-Free: Rotating parts are designed to be maintenance-free, ensuring long-lasting operation with minimal upkeep.
4.Rust-Free Operation: Constructed with hot-dip galvanized steel parts and oil-free self-lubricating shaft supports for reliable and rust-free performance.
5.High Pollution Resistance: The high-strength ceramic insulator is designed for strong pollution resistance and adaptability in harsh environments.
| Project | Unit | Parameter | ||||
| Rated voltage | kV | 40.5 | ||||
| Rated frequency | Hz | 50 | ||||
| Rated current | A | 630 | 1250 | 2000 | ||
| Rated short-time withstand current | kA | 20/25 | 25/31.5 | 31.5 | ||
| Rated peak withstand current | kA | 50/63 | 63/80 | 80 | ||
| Rated short-time power frequency withstand voltage | kv/min | 95/1(phase to phase,ground to ground,dry test) | ||||
| 118/1(phase to phase,ground to ground,dry test) | ||||||
| 95/1(interphase,wet test) | ||||||
| Rated lightning impulse withstand voltage | kV | 185/1(to the ground) | ||||
| 215(fracture surface) | ||||||
| Rated short-time withstand current duration | S | 4(isolation switch),2(grounding switch) | ||||
| Creepage | mm | ≥1256(E-grade anti fouling) | ||||
| Main circuit resistance | μΩ | ≤100 | ≤80 | |||
| Equipped with operatingmechanism | Human operation mechanism |
|
Main knife CS17-G5,groundknife CS17-G2(with single/double grounding switch) | |||
| CJ6 type,motor voltage AC380Vor DC220V,control voltage AC220V or DC220V,Auxiliary contacts 8 normally open and 8 normally closed(standard) | ||||||
| Electric motor operating mechanism |
|
CS17-G5(without grounding switch) | ||||
| Mechanical life | Times | 2000(isolating switch grounding switch) | ||||
1.Frequency and Usage: Operates at 50Hz, suitable for switching high-voltage lines under voltage and no-load conditions, and for isolating equipment during maintenance.
2.Versatile Current Handling: Capable of opening and closing very small capacitor currents and inductor currents, enhancing operational flexibility.
3.Advanced Contact Material: Touch fingers made from high-strength, high-conductivity, and high-elasticity materials to prevent issues caused by corrosion and heating.
4.Environmental Adaptability: Designed to meet operational requirements in high-altitude areas with large creepage distances for improved insulation performance.
1.Double-Column V-shaped Self-Cleaning Contact Structure: Automatically cleans contact surfaces during opening and closing, improving conductivity reliability and operational lifespan.
2.Welding-Free Modular Installation: Bolted connection design allows on-site assembly without welding, reducing installation complexity and construction requirements.
3.High-Altitude and Heavy Pollution Resistance: Equipped with large creepage distance, high-strength porcelain insulators, suitable for altitudes up to 3000 meters and Class IV polluted areas.
4.Optional Grounding Switch Configuration: Supports single or double grounding designs to meet different system grounding needs and enhance maintenance safety.
1.Fully Maintenance-Free Rotating Parts: Bushings made of self-lubricating composite materials require no periodic greasing, reducing maintenance workload.
2.Long Mechanical Life Design: Mechanical lifespan of 2000 operations, with contact materials resistant to corrosion and welding, extending maintenance intervals.
3.Modular Replacement Convenience: Core components such as insulators and contacts can be replaced individually, lowering overall maintenance costs.
4.No Auxiliary Power Required (Manual Type): Manual operating mechanism is fully mechanical, suitable for sites without control power.
1.Sectional Packaging for Transport: Porcelain insulators, operating mechanisms, and conductive loops are packed separately to prevent shipping damage and facilitate handling.
2.On-Site Assembly Guidance: Provides detailed assembly drawings and videos, with remote technical support to shorten installation time.
3.Adaptable Mounting Base: Base design compatible with various concrete poles or steel structures, minimizing civil modification needs.
4.Global Export Experience: Products comply with IEC standards, complete with export documentation and multilingual installation manuals.
1.Full Hot-Dip Galvanized Anti-Corrosion Structure: All steel components are hot-dip galvanized, with a corrosion-resistant lifespan of over 30 years.
2.High-Strength Porcelain Insulators: High bending strength, excellent anti-pollution flashover performance, tested through multiple thermal cycling and mechanical load tests.
3.Optimized Conductive Loop Design: Contact fingers made of high-elasticity copper alloy ensure stable contact pressure and low loop resistance (≤80μΩ).
4.Wide-Temperature Operation Capability: Suitable for ambient temperatures from -40℃ to +40℃, with stable operating torque and no jamming.
1.CNC Machining and Automated Assembly: Key components processed with CNC machining for dimensional accuracy, assembly line equipped with torque-controlled tools.
2.Full-Process Quality Inspection: Each unit undergoes loop resistance tests, mechanical operation tests, power frequency, and impulse withstand voltage tests.
3.Eco-Friendly Surface Treatment: Uses chromium-free passivation and Dacromet processes, compliant with RoHS environmental requirements.
4.Traceability Management System: Each batch of insulators and operating mechanisms has a unique serial number for full traceability from raw materials to finished products.
