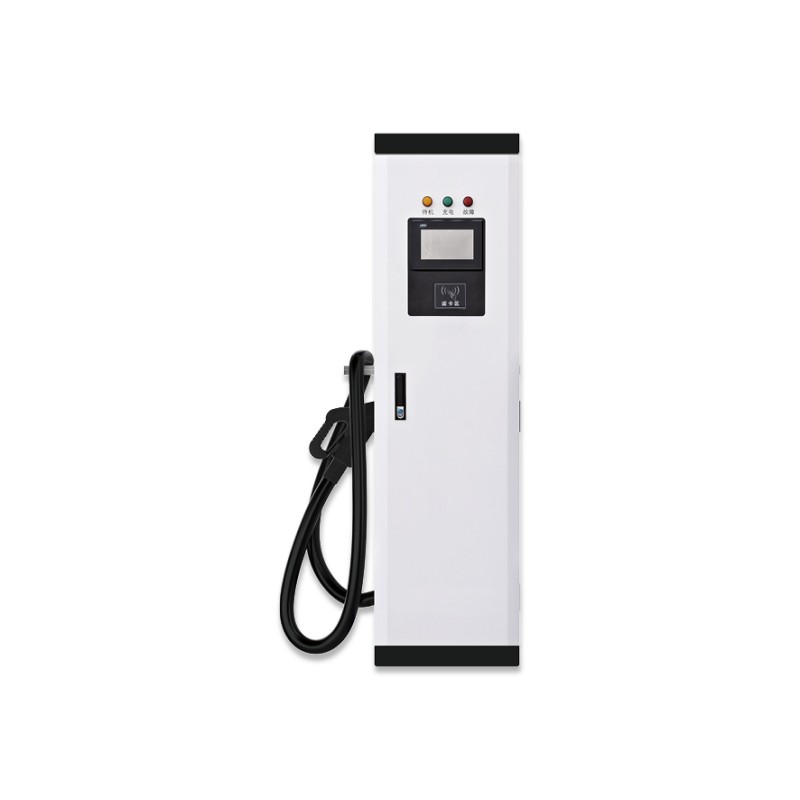

How Does a DC Compact Integrated Charging Pile Improve Electric Vehicle Charging?

Summary: The rapid growth of electric vehicles has created a demand for efficient, space-saving, and reliable charging solutions. The DC Compact Integrated Charging Pile addresses these challenges by combining high-power charging capabilities with compact design. In this article, we explore how this technology works, its benefits, and what to consider when deploying it for personal or commercial use.

Table of Contents

• Overview of DC Compact Integrated Charging Pile
• Key Features and Advantages
• Technical Specifications
• Installation Considerations
• Maintenance Tips
• Frequently Asked Questions
• Conclusion

Overview of DC Compact Integrated Charging Pile

DC Compact Integrated Charging Piles are designed to deliver high-speed direct current (DC) charging for electric vehicles (EVs) while maintaining a compact footprint. Unlike traditional charging stations, these integrated units combine power conversion, cooling, and monitoring systems into a single modular package.

• High-efficiency DC charging up to 120 kW or more
• Integrated safety systems to prevent overloads or short circuits
• Space-saving design suitable for urban areas

These charging piles are ideal for parking lots, commercial buildings, and highway charging stations where both efficiency and space are crucial.

Key Features and Advantages

• Efficient energy conversion minimizes electricity loss.
• Supports multiple charging protocols for compatibility with all EV brands.

Technical Specifications

When choosing a DC Compact Integrated Charging Pile, understanding the technical specifications is essential:

• Input Voltage: 380V AC ± 15%
• Output Voltage: 200V – 950V DC
• Charging Current: Up to 200A
• Efficiency: > 95%
• Operating Temperature: -20°C to +50°C
• Protection Rating: IP54 or higher

This ensures that the charging pile can operate reliably in diverse environments, from indoor parking garages to outdoor highway stations.

Installation Considerations

Proper installation is key to maximizing the performance of a DC Compact Integrated Charging Pile. Consider the following:

1. Location: Ensure easy access for EV drivers and sufficient space for ventilation.
2. Power Supply: Confirm that local power infrastructure can support high-power DC output.
3. Grounding and Safety: Proper earthing and circuit protection are essential for safety compliance.
4. Networking: If remote monitoring is required, ensure internet or LAN connectivity.

Following these guidelines reduces downtime and ensures consistent charging performance.

Maintenance Tips

Regular maintenance extends the lifespan and reliability of the charging pile:

• Inspect power and data connections monthly.
• Clean the cooling vents and remove debris to prevent overheating.
• Update firmware to maintain compatibility with new EV models.
• Test safety systems quarterly to ensure protection features are functional.

Frequently Asked Questions

Q1: Can this charging pile support all electric vehicle brands?

A1: Yes, it is compatible with standard DC charging protocols and most EV models.

Q2: How fast can a vehicle charge using this system?

A2: Charging speed depends on the EV battery capacity, but high-power units can deliver up to 120 kW, allowing a 0–80% charge in about 30–40 minutes for many vehicles.

Q3: Is it suitable for outdoor installation?

A3: Yes, it is designed to operate under harsh environmental conditions with IP54 or higher protection.

Q4: How do I monitor the charging status remotely?

A4: The integrated smart monitoring system allows real-time data access via web or mobile applications.

Conclusion

The DC Compact Integrated Charging Pile is an innovative solution that combines high-speed charging, compact design, and intelligent monitoring. For businesses and urban planners looking to enhance EV infrastructure efficiently, it is a practical choice that balances performance, safety, and space considerations.

Jinhand Electrical Co., Ltd. offers a complete range of DC Compact Integrated Charging Piles. For detailed product specifications, deployment guidance, and purchasing inquiries, contact us today to enhance your EV charging capabilities.
