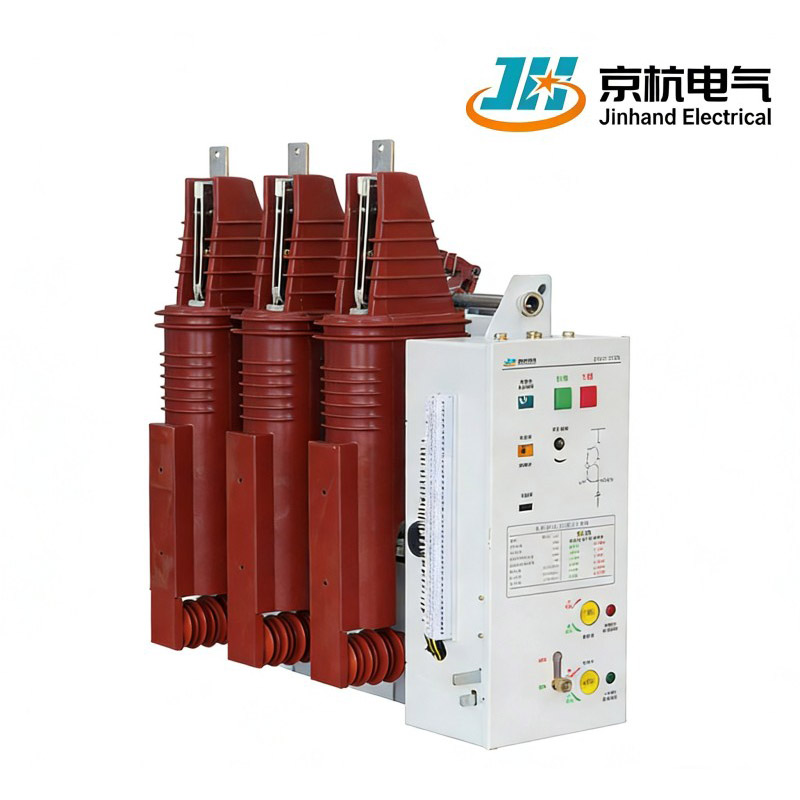

The VGD-12GD AC High Voltage Three Position Combination Vacuum Circuit Breaker from China's Jinhand Electrical features integrated side-mounting with disconnector, dual earthing switches, and compact interlocking for 500mm cabinets. As a leading manufacturer and factory supplier, we ensure high-quality 12kV/1250A/31.5kA performance with solid insulation, live display sensors, and no-adjust door interlocks.
1.Integrated Design: The device features an integrated, side-mounted design with disconnectors and earthing switches, providing a compact solution that saves space and simplifies installation.
2.High Current Capacity: Rated for 12kV and a current capacity ranging from 630A to 1250A, withstanding short-circuit currents up to 31.5kA, making it suitable for robust applications.
3.User-Friendly Features: Equipped with a non-contact live display sensor for the outgoing terminal, enhancing safety by allowing users to monitor live status without physical contact.
| Project | Unit | Parameter | ||
| Rated Voltage | kV | 12 | ||
| (1min)Rated Short-Time Power Frequency Withstand Voltage:Phase-to-Phase /Interrupter | 42/48 | |||
| Rated Lightning Impulse Withstand Voltage(Peak):Phase-to-Phase /Interrupter | 75/85 | |||
| Secondary Circuit Power Frequency Withstand Voltage(1min | V | 2000 | ||
| Rated Frequency | Hz | 50 | ||
| Rated Current | A | 630 1250 | ||
| Rated Short-Circuit Breaking Current | kA | 20 | 25 | 31.5 |
| Rated Peak Withstand Current | kA | 50 | 63 | 80 |
| Rated Short-Circuit Making Current | kA | 50 | 63 | 80 |
| 4s Rated Short-Time Withstand Current | kA | 20 | 25 | 31.5 |
| Rated Short-Time Withstand Current Duration | s | 4 | ||
| Rated Single /Back-to-Back Capacitor Bank Breaking Current | A | 630/400 | ||
| Rated Capacitor Bank Inrush Current Making | kA | 12.5(frequency ≤1000Hz) | ||
| Rated Number of Short-Circuit Breaking Operations | Times | 30 | ||
| Mechanical Life(Isolating Switch/Circuit Breaker/Earthing Switch) |
|
3000/10000/3000 | ||
| Permissible Cumulative Wear Thickness of Moving and Fixed Contacts | mm | 3 | ||
| Rated Closing Operating Voltage | V | AC24/48/110/220 DC24/48/110/220 | ||
| Rated Opening Operating Voltage | ||||
| Storage Motor Rated Voltage | V | AC24/48/110/220 DC24/48/110/220 | ||
| Storage Motor Rated Power | W | 90 | ||
| Storage Time | S | ≤15 | ||
| Contact Gap | mm | 9±1 | ||
| Overtravel | 3.5±0.5 | |||
| Contact Closing Bounce Time | ms | ≤2 | ||
| Three-Phase Opening and Closing Non-Simultaneity | ≤2 | |||
| Opening Time (Rated Voltage) | ≤40 | |||
| Closing Time (Rated Voltage) | ≤60 | |||
| Average Opening Speed (Contact Just Open to 6mm) | m/s | 0.9～1.3 | ||
| Average Closing Speed (6mm to Contact Just Closed) | 0.5～0.9 | |||
| Contact Opening Rebound Amplitude | mm | ≤2 | ||
| Contact Closing Contact Pressure | N | 2400±200(20-25kA)3100±200(31.5kA) | ||
| Rated Operating Sequence |
|
0-0.3s-CO-180s-CO | ||
| Loop Resistance | μ | ≤130 | ||
1.Integrated Design: The device features an integrated, side-mounted design with disconnectors and earthing switches, providing a compact solution that saves space and simplifies installation.
2.High Current Capacity: Rated for 12kV and a current capacity ranging from 630A to 1250A, withstanding short-circuit currents up to 31.5kA, making it suitable for robust applications.
3.User-Friendly Features: Equipped with a non-contact live display sensor for the outgoing terminal, enhancing safety by allowing users to monitor live status without physical contact.
1.Three-Position Integrated Design: Integrates isolating switch, vacuum circuit breaker, and double earthing switches into one unit, saving space and simplifying wiring.
2.Ultra-Compact Installation: Optimized for 500mm cabinet width, saving 40% installation space compared to traditional solutions.
3.Adjustment-Free Interlock: Cabinet door interlock mechanism is factory pre-adjusted, requiring no on-site adjustments, simplifying installation.
4.Non-Contact Live Display: Outgoing terminals equipped with non-contact sensors, safely and visually displaying live status.
5.Reliable Solid Insulation: Main circuit uses solid insulation technology, improving insulation reliability and reducing maintenance needs.
1.Three-Position Integrated Drive: Single-shaft drive achieves reliable switching between isolation, opening/closing, and earthing positions.
2.Intelligent Position Sensors: Uses Hall sensors to accurately detect the status of each position.
3.Adaptive Pressure Adjustment: Automatic contact pressure compensation mechanism ensures consistent electrical lifespan.
4.Modular Incoming/Outgoing Terminals: Supports flexible front/rear terminal configurations to adapt to different cabinet types.
5.Environmental Adaptability Design: Protection rating IP4X, suitable for operating environments from -25°C to +40°C.
1.Three-Position Technology Leadership: One of China's earliest enterprises to develop three-position vacuum circuit breakers, with deep technical expertise.
2.Standardized Production Capacity: Annual production of over 10,000 three-position circuit breakers, with significant scale benefits.
3.Strict Quality Control: Certified under ISO9001 quality management system, products hold multiple international certifications.
4.Rapid Response Service: Establishes a 7×24 technical support hotline, with emergency issue response within 4 hours.
5.Customized Solutions: Provides cabinet coordination design and parameter customization based on specific customer needs.
