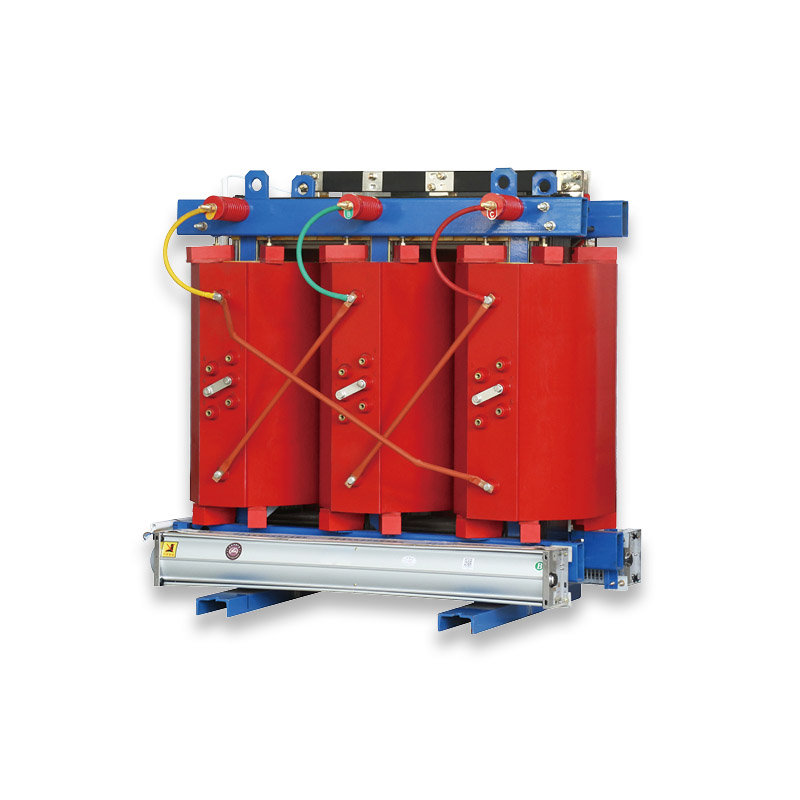

2500kVA Dry Type Electrical Power Distribution Transformer

China’s Jinhand Electrical offers the 2500kVA Dry Type Electrical Power Distribution Transformer, perfect for settings with stringent fire safety requirements such as mines, hospitals, and commercial centers. As a leading manufacturer and factory supplier, we provide this reliable, high-performance, and cost-effective transformer for a variety of indoor installations.

Advantages

1.Dual High Energy Efficiency: SCB14 meets national Class 2 efficiency; SCB18 meets Class 1 efficiency, with 15% lower no-load loss than SCB14.
2.Strong Environmental Adaptability: Moisture-proof, dust-resistant, and corrosion-resistant, operating reliably in RH≥95% humid/dusty indoor environments.
3.Maintenance-Free Longevity: Fully enclosed structure, 30+ year lifespan, and 0.3% annual fault rate—far below industry averages.

MAIN TECHNICAL PARAMETERS

Main Features

1.Critical Infrastructure Compatibility: Perfect for mines, subways, industrial parks, commercial centers, high-rises, and large indoor workshops—no dedicated transformer room required.
2.Low-Noise Operation: Equipped with vibration dampers and soundproof layers, noise ≤58dB, 10-15dB below national standards.
3.Global Grid Adaptability: 50Hz standard operation, multi-voltage input, and flexible tap adjustment, adapting to 95% of indoor large-power distribution scenarios worldwide.
4.Eco-Friendly & Space-Saving: Recyclable materials, non-toxic emissions; compact structure saves 35% installation space vs. oil-immersed transformers.
5.Smart Integration Ready: Supports temperature monitoring and industrial IoT connectivity for digitalized management.

Product Selling Points

1.Fire-Safe Core Advantage: F1-class fire resistance certification, eliminating 99% of oil-immersed transformer fire risks—certified for use in fire-sensitive large facilities like hospitals and subway hubs.
2.Ultra-Efficient Operation: SCB18 saves ~8,200kWh/year vs. conventional dry-type transformers; 0.70% no-load current cuts reactive power loss by 35%.
3.Innovative Casting Technology: Integrated high/low-voltage coil casting—mechanical strength 40% higher than split designs, resisting moisture, vibration, and short-circuit impact.
4.Large-Capacity Flexibility: 2500kVA output meets the power needs of large industrial parks, commercial complexes, and infrastructure projects; supports parallel operation for capacity expansion up to 5000kVA.
5.Low-Carbon & Quiet: No toxic emissions, compliant with green building standards; noise ≤58dB, suitable for noise-sensitive large-scale indoor spaces.

Operation and Maintenance Cost Optimization

1.Zero Maintenance Costs: Only surface dust wiping required; no oil changes, internal cleaning, or insulation replacement—annual maintenance cost ≤$300 (80% lower than oil-immersed models).
2.Energy Saving Benefits: SCB18’s 2080W no-load loss reduces annual electricity costs by $820-$1,230 (based on 0.1−0.15/kWh industrial tariff).
3.Long-Term Replacement Savings: 30+ year lifespan avoids $40,000-$60,000 replacement expenses every 10-15 years (conventional large-capacity dry-type transformers).
4.High Operational Efficiency: Factory pre-debugged, on-site installation completed in 10 hours—minimizing project downtime for large-scale facilities.

Durability and Stability

1.Environmental Resilience: Operates stably in humid, dusty, or corrosive indoor environments; insulation resistance ≥1000MΩ after 10 years of use.
2.Structural Reliability: Vibration-resistant integrated casting design—no coil displacement or insulation damage, even in industrial or subway vibration scenarios.
3.Continuous Operation: Mean time between failures>30,000 hours, supporting 24/7 uninterrupted power supply for critical large-scale facilities.
4.Anti-Aging Performance: Full-copper windings resist thermal aging; epoxy resin insulation with anti-aging additives ensures consistent performance over 30 years.

Production Process Advantages

1.Advanced Casting Technology: Vacuum epoxy resin casting ensures 100% insulation penetration, eliminating air bubbles and improving insulation stability for large-capacity operation.
2.Precision Manufacturing: CNC automatic winding machines; robotic welding for tank structure—ensuring consistent quality and mechanical strength.
3.Strict Quality Control: ISO9001 compliant, 20 quality inspection links, 100% incoming raw material testing and finished product verification.
4.Core Technical Expertise: Independent R&D of low-loss electromagnetic design for large-capacity transformers; optimized coil structure reduces stray loss by 18% vs. industry benchmarks.

Green Energy-Saving Characteristics

1.Dual Efficiency Compliance: Meets GB 20052-2020 Class 1/2 and IEC 60076 international standards, eligible for energy-saving subsidies.
2.Eco-Friendly Materials: RoHS/REACH-compliant epoxy resin and non-toxic flame retardants—100% recyclable, no harmful emissions during production or use.
3.Low-Carbon Operation: SCB18 reduces annual carbon emissions by ~10 tons, supporting global "double carbon" goals and sustainable development of large-scale facilities.

Supply Chain Advantages

1.Stable Raw Materials: Long-term strategic partnerships with top suppliers ; 4-month safety stock for core materials to avoid production delays.
2.Rapid Customization: Professional R&D team delivers personalized designs (voltage, protection grade, smart functions) in 3 working days; 2 dedicated production lines for 2500kVA large-capacity models.
3.Fast Delivery: Standard models: 35-45 day lead time; customized models: 50-65 days—30% faster than industry average; 98% on-time delivery rate.
