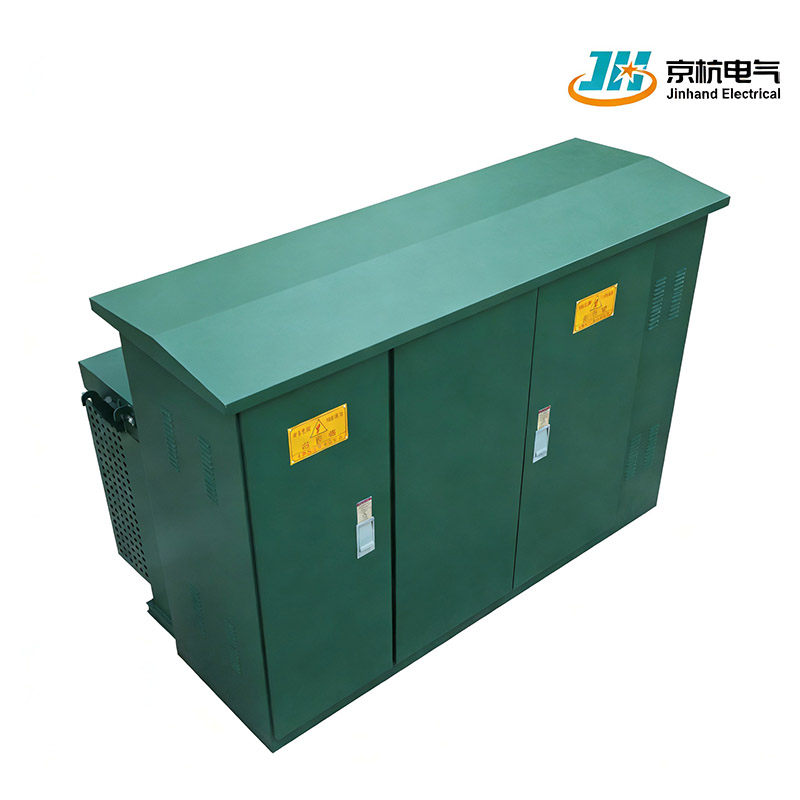

Jinhand Electric Co., Ltd., as a well-known electrical equipment supplier in China, leverages its deep industry expertise to provide customers with efficient and reliable electrical solutions, supporting business development.The ZGS13-12 Combined American Prefabricated Substation is an outstanding indoor power distribution solution suitable for various applications. Our factory is equipped with advanced production facilities to ensure we meet customers' procurement requirements.
1.Compact Size:The integrated design allows for a smaller footprint, making it suitable for space-constrained environments.
2.Easy Installation and Maintenance:Simplifies the setup process and reduces maintenance efforts, saving time and resources.
3.Low Noise and Losses:Operates quietly while minimizing energy losses, contributing to increased efficiency.
4.Anti-Theft Capabilities:Designed with security features to prevent theft, enhancing overall safety.
5.Full Protection:Equipped with comprehensive protective measures to ensure safe operation.
6.Strong Overload Capacity:Capable of handling overload situations, ensuring reliability in demanding conditions.
| Name | Unit | Parameter |
| Rated voltage | kV | 10/4(High pressure/low pressure) |
| Maximum operating voltage | kV | 12(High voltage side) |
| Rated frequency | Hz | 50 |
| Rated capacity | kVA | 50-1600 |
| 1 minute power frequency withstand voltage | kV | 35 |
| Lightning impulse voltage | kV | 75 |
| Cooling method |
|
Oil immersed self cooling |
| High voltage backup fuse breaking current | kA | 50 |
| Interrupting current of plug-in fuse | kA | 25 |
| Ambient temperature | ℃ | -35~+40 |
| Allowable temperature rise of coil | ℃ | 65 |
| No-load voltage regulation |
|
±5%±2×2.5% |
| Noise level | db | 50 |
| Protection level |
|
IP43 |
1.Versatile Applications:Suitable for various locations including new residential areas, green belts, parks, station hotels, construction sites, airports, and more.
2.Integrated American-Style Design:Combines multiple functionalities in a single unit, enhancing performance and efficiency.
1.American-Style Integrated Design: Features a compact, integrated structure that combines high-voltage switches, transformers, and low-voltage equipment within a single enclosure, offering an aesthetic appearance and minimal footprint.
2.Low-Noise and Low-Loss Operation: Utilizes oil-immersed self-cooling technology and optimized electromagnetic design, with operating noise ≤50dB and low no-load losses for energy efficiency and environmental friendliness.
3.Anti-Vandalism and Anti-Theft Design: Sturdy enclosure construction equipped with防盗 locks and anti-prying devices, suitable for unattended public areas.
4.Fully Sealed Insulation Protection: High-voltage components adopt a fully sealed insulation structure with a protection rating of IP43, suitable for harsh outdoor environments such as humidity and dust.
5.Wide Temperature Adaptability and Strong Overload Capacity: Operates stably in temperatures from -35°C to +40°C, with robust short-term overload capability to ensure continuous power supply.
6.Flexible Capacity Configuration: Rated capacity ranges from 50–1600kVA, allowing flexible selection based on power demand and suitability for various distribution scenarios.
Q1: Is this American-style compact substation suitable for high-humidity or coastal areas?
A: Yes, the enclosure has an IP43 protection rating, and the internal fully sealed insulation structure effectively resists moisture and salt spray, making it suitable for coastal, wetland, and other high-humidity environments.
Q2: Does installation require special foundations?
A: Foundation requirements are simple, typically a flat concrete base. We provide detailed foundation drawings and installation guidelines for quick on-site setup.
Q3: Does it support intelligent monitoring?
A: Yes, an optional smart monitoring system is available for real-time monitoring of parameters such as temperature, current, and voltage, with support for remote data transmission and alarm functions.
Q4: Are the high-voltage side fuses easy to replace?
A: Designed with plug-in fuses for easy and safe replacement without special tools.
Q5: Will the substation’s operating noise affect the surrounding environment?
A: Operating noise is ≤50dB, equivalent to normal indoor conversation levels, minimizing impact on the surroundings. It is particularly suitable for noise-sensitive areas such as residential zones and parks.
We take pride in our exceptional quality, which has been instrumental in forging lasting client relationships in over 30 nations and amassing a portfolio of stellar feedback.
With more than a decade of focused development, Jinhand has become one of China’s leading manufacturers and suppliers of electrical equipment. Our factory utilizes a great many advanced technologies and equipment, and we invite you to purchase our high-quality, competitively priced products made in China.
